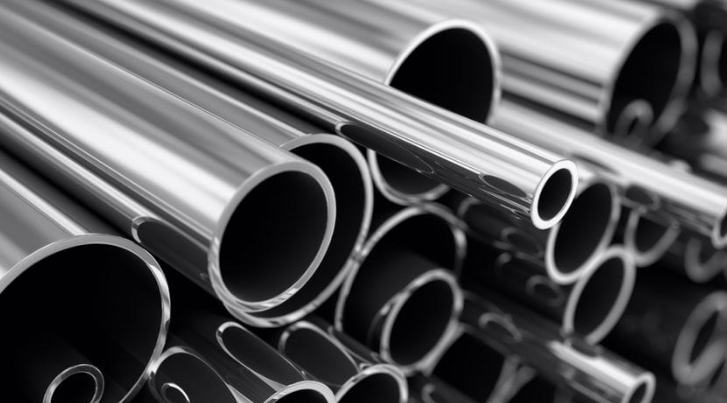

Standard Tube Sizes

Xometry offers instant pricing and lead times on custom tube fabrication services. These services include laser tube cutting and tube bending. The article outlines the standard round, square, and rectangular tube stock available through Xometry.

Round Tube
Square Tube
Rectangular Tube
Stainless Steel: 304 and 316 Welded and Seamless
Aluminum 6061 Extruded and Drawn
Alloy Steel 4130 Seamless
Steel A513 DOM, HREW, and CREW

What Tube Sizes Does Xometry Offer for Bending and Cutting?

Xometry offers tube bending and laser tube cutting services via the Xometry Instant Quoting Engine®. Simply upload a tube design to start your quote and get pricing and manufacturability feedback right away.

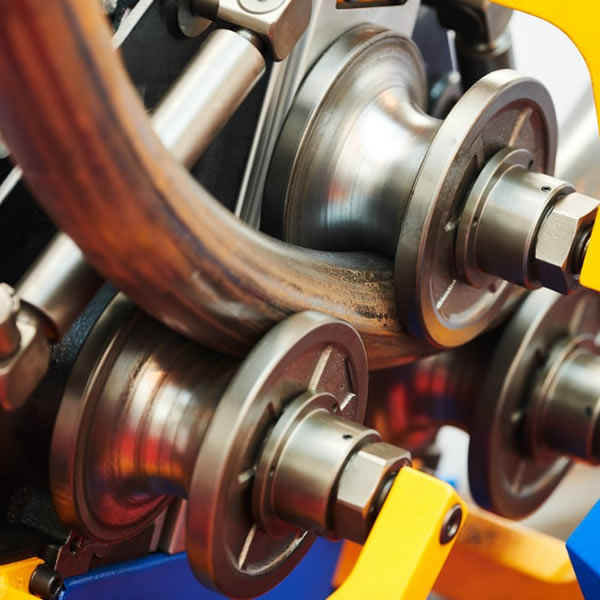

Tube Bending

Tube bending services through Xometry are for round tubes, and the information below outlines a comprehensive list of available alloys and sizes. Files uploaded near the standard size listed below will assume that standard size for fabrication. These quick design for manufacturing (DFM) tips will ensure your project will quickly quote and be made with ease:

Minimum bendable tube diameter: .250"
Maximum bendable tube diameter: 2.000"
Minimum bendable tube wall thickness: .035"
Maximum bendable tube wall thickness: .188"
A single piece can support multiple tube bends. However, a consistent center line radius (CLR) across multiple bends is recommended.
We recommend a bend radius to tube diameter ratio of 2:1 to 5:1, no greater than 6", using the center line radius (CLR).
For tubes under one inch, bend distances should be at least 2X the outer diameter. Increase that distance for larger tube diameters; for one to two inches, we suggest at least 3X the distance and 4X between bends for tubes over two inches.
Assume normal-to-surface cutting for cut features and end conditions.
Learn more through our top tube bending design tips article.

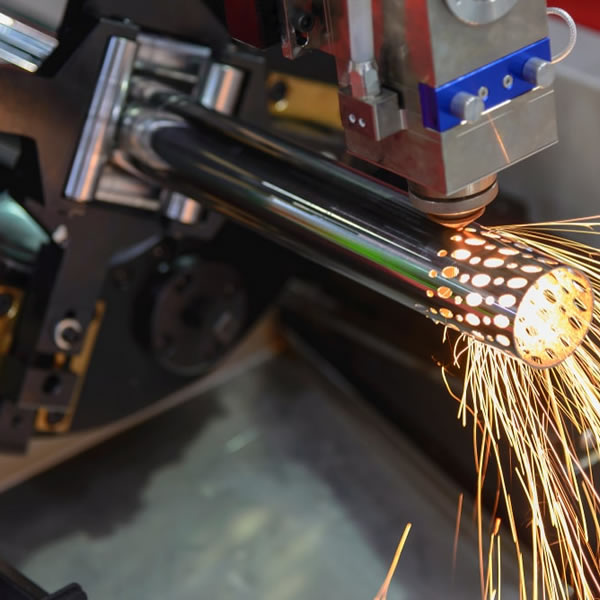

Laser Tube Cutting

Xometry offers laser tube cutting services for an even larger menu of round, square, and rectangular tube sizes. The information below shows the sizes available for tube cutting by profile and alloy. Xometry can cut tubes in a variety of sizes:

Minimum round outer diameter: .500"
Maximum round outer diameter: 6.000"
Minimum square or rectangle dimension: .500"
Maximum square or rectangle dimension: 6.000"
Minimum wall thickness: .035"
Maximum wall thickness: .500"
Learn more through our top design tips for laser tube cutting article.

Alloy Steel Square and Rectangular Stock

Alloy steel A513 and 4130 square or rectangular tubes are high-strength and robust options for demanding structural requirements. 4130 is also known as chromoly, and is formulated to have a superior strength-to-weight ratio. A513 tubing is used for shelving and automotive frames.

Square Steel A513

Laser Tube Cutting Sizes Square Steel A513
WIDTH	WALL THICKNESS
.500 in.	.049 in.	.065 in.
.625 in.	.049 in.	.065 in.
.750 in.	.049 in.	.065 in.		.083 in.	.095 in.		.120 in.
.875 in.	.049 in.	.065 in.
1.000 in.	.049 in.	.065 in.	.072 in.	.083 in.		.109 in.	.120 in.
1.125 in.	.049 in.	.065 in.
1.250 in.	.049 in.	.065 in.		.083 in.	.095 in.	.109 in.	.120 in.
1.500 in.	.049 in.	.065 in.		.083 in.	.095 in.	.109 in.	.120 in.
1.750 in.		.065 in.		.083 in.	.095 in.	.109 in.	.120 in.
2.000 in.	.049 in.	.065 in.		.083 in.	.095 in.	.109 in.	.120 in.
2.500 in.		.065 in.		.083 in.	.095 in.	.109 in.	.120 in.
3.000 in.				.083 in.

Aluminum Round Stock

Aluminum is a lightweight and strong material used in a variety of applications, including frames, cable routing, structural bodies, and more.

Round Aluminum 6061, Extruded

Tube Bending Sizes Round Aluminum 6061,Extruded
TUBE OD	WALL THICKNESS
.750 in.	.125 in.
1.000 in.	.125 in.
1.500 in.	.125 in.
1.750 in.	.125 in.
2.000 in.	.125 in.

Stainless Steel Round Stock

Stainless 304 and 316 tubes can be bent and cut in a variety of geometries. 304 is typically a general purpose stainless steel and 316 has increased corrosion resistance.

Round Stainless Steel 304, Welded

Tube Bending Sizes Round Stainless Steel 304,Welded
TUBE OD	WALL THICKNESS
.250 in.	.035 in.	.049 in.	.065 in.
.375 in.	.035 in.	.049 in.	.065 in.
.500 in.	.035 in.	.049 in.	.065 in.
.625 in.	.035 in.	.049 in.	.065 in.		.120 in.
.750 in.	.035 in.	.049 in.	.065 in.		.120 in.
.875 in.	.035 in.	.049 in.	.065 in.		.120 in.
1.000 in.	.035 in.	.049 in.	.065 in.	.083 in.	.120 in.
1.250 in.	.035 in.	.049 in.	.065 in.	.083 in.	.120 in.
1.500 in.	.035 in.	.049 in.	.065 in.	.083 in.	.120 in.
1.750 in.			.065 in.		.120 in.
2.000 in.	.035 in.	.049 in.	.065 in.	.083 in.	.120 in.

Laser Tube Cutting Sizes Round Stainless Steel 304,Welded
TUBE OD	WALL THICKNESS
.500 in.	.035 in.	.049 in.	.065 in.
.625 in.	.035 in.	.049 in.	.065 in.		.120 in.
.750 in.	.035 in.	.049 in.	.065 in.		.120 in.
.875 in.	.035 in.	.049 in.	.065 in.		.120 in.
1.000 in.	.035 in.	.049 in.	.065 in.	.083 in.	.120 in.
1.125 in.	.035 in.		.065 in.
1.250 in.	.035 in.	.049 in.	.065 in.	.083 in.	.120 in.
1.375 in.		.049 in.	.065 in.
1.500 in.	.035 in.	.049 in.	.065 in.	.083 in.	.120 in.
1.125 in.	.035 in.	.049 in.	.065 in.	.083 in.	.120 in.
1.750 in.			.065 in.		.120 in.
2.000 in.	.035 in.	.049 in.	.065 in.	.083 in.	.120 in.
2.250 in.			.065 in.		.120 in.
2.500 in.			.065 in.	.083 in.	.120 in.
3.000 in.			.065 in.	.083 in.	.120 in.
3.500 in.			.065 in.
4.000 in.			.065 in.	.083 in.	.120 in.
5.000 in.			.065 in.
6.000 in.			.065 in.		.120 in.

Round Stainless Steel 304, Seamless

Tube Bending Sizes Round Stainless Steel 304,Seamless
TUBE OD	WALL THICKNESS
.250 in.	.035 in.	.049 in.	.065 in.	.083 in.
.375 in.	.035 in.	.049 in.	.065 in.	.083 in.	.095 in.	.120 in.
.500 in.	.035 in.	.049 in.	.065 in.	.083 in.	.095 in.	.120 in.
.625 in.	.035 in.	.049 in.	.065 in.	.083 in.	.095 in.	.120 in.
.750 in.	.035 in.	.049 in.	.065 in.	.083 in.	.095 in.	.120 in.	.188 in.
.875 in.	.035 in.	.049 in.	.065 in.	.083 in.	.095 in.	.120 in.
1.000 in.	.035 in.	.049 in.	.065 in.	.083 in.	.095 in.	.120 in.	.188 in.
1.250 in.	.035 in.	.049 in.	.065 in.	.083 in.		.120 in.	.188 in.
1.500 in.	.035 in.	.049 in.	.065 in.	.083 in.		.120 in.	.188 in.
1.750 in.			.065 in.			.120 in.	.188 in.
2.000 in.			.065 in.		.095 in.	.120 in.	.188 in.

Laser Tube Cutting Sizes Round Stainless Steel 304,Seamless
TUBE OD	WALL THICKNESS
.500 in.	.035 in.	.049 in.	.065 in.	.083 in.	.095 in.	.120 in.
.625 in.	.035 in.	.049 in.	.065 in.	.083 in.	.095 in.	.120 in.
.750 in.	.035 in.	.049 in.	.065 in.	.083 in.	.095 in.	.120 in.	.188 in.
.875 in.	.035 in.	.049 in.	.065 in.	.083 in.	.095 in.	.120 in.
1.000 in.	.035 in.	.049 in.	.065 in.	.083 in.	.095 in.	.120 in.	.188 in.	.250 in.
1.125 in.			.065 in.			.120 in.	.188 in.
1.250 in.	.035 in.	.049 in.	.065 in.	.083 in.		.120 in.	.188 in.	.250 in.
1.375 in.	.035 in.	.049 in.	.065 in.			.120 in.
1.500 in.	.035 in.	.049 in.	.065 in.	.083 in.		.120 in.	.188 in.	.250 in.
1.625 in.			.065 in.
1.750 in.			.065 in.			.120 in.	.188 in.	.250 in.
2.000 in.			.065 in.		.095 in.	.120 in.	.188 in.	.250 in.	.375 in.
2.250 in.			.065 in.				.188 in.	.250 in.
2.500 in.			.065 in.				.188 in.	.250 in.	.375 in.
2.750 in.								.250 in.	.375 in.
3.000 in.			.065 in.				.188 in.	.250 in.	.375 in.
3.250 in.								.250 in.
4.000 in.								.250 in.
5.000 in.								.250 in.
6.000 in.								.250 in.

Round Stainless Steel 316, Welded

Tube Bending Sizes Round Stainless Steel 316,Welded
TUBE OD	WALL THICKNESS
.250 in.	.035 in.	.049 in.	.065 in.
.375 in.	.035 in.	.049 in.	.065 in.
.500 in.	.035 in.	.049 in.	.065 in.
.625 in.		.049 in.	.065 in.
.750 in.	.035 in.	.049 in.	.065 in.
1.000 in.	.035 in.	.049 in.	.065 in.	.120 in.
1.250 in.			.065 in.
1.500 in.			.065 in.	.120 in.
1.750 in.			.065 in.
2.000 in.			.065 in.	.120 in.

Laser Tube Cutting Sizes Round Stainless Steel 316,Welded
TUBE OD	WALL THICKNESS
.500 in.	.035 in.	.049 in.	.065 in.
.625 in.		.049 in.	.065 in.
.750 in.	.035 in.	.049 in.	.065 in.
1.000 in.	.035 in.	.049 in.	.065 in.	.120 in.
1.250 in.			.065 in.
1.500 in.			.065 in.	.120 in.
1.750 in.			.065 in.
2.000 in.			.065 in.	.120 in.
2.500 in.			.065 in.
3.000 in.			.065 in.
4.000 in.			.065 in.

Round Stainless Steel 316, Seamless

Tube Bending Sizes Round Stainless Steel 316,Seamless
TUBE OD	WALL THICKNESS
.250 in.	.035 in.	.049 in.	.065 in.	.083 in.
.375 in.	.035 in.	.049 in.	.065 in.	.083 in.
.500 in.	.035 in.	.049 in.	.065 in.	.083 in.	.120 in.
.625 in.	.035 in.	.049 in.	.065 in.	.083 in.	.120 in.
.750 in.	.035 in.	.049 in.	.065 in.	.083 in.	.120 in.
.875 in.	.035 in.	.049 in.	.065 in.	.083 in.	.120 in.
1.000 in.	.035 in.	.049 in.	.065 in.	.083 in.	.120 in.
1.250 in.		.049 in.	.065 in.	.083 in.	.120 in.
1.500 in.		.049 in.	.065 in.		.120 in.
1.750 in.			.065 in.
2.000 in.			.065 in.		.120 in.

Laser Tube Cutting Sizes Round Stainless Steel 316,Seamless
TUBE OD	WALL THICKNESS
.500 in.	.035 in.	.049 in.	.065 in.	.083 in.	.120 in.
.625 in.	.035 in.	.049 in.	.065 in.	.083 in.	.120 in.
.750 in.	.035 in.	.049 in.	.065 in.	.083 in.	.120 in.
.875 in.	.035 in.	.049 in.	.065 in.	.083 in.	.120 in.
1.000 in.	.035 in.	.049 in.	.065 in.	.083 in.	.120 in.
1.250 in.		.049 in.	.065 in.	.083 in.	.120 in.
1.375 in.		.049 in.	.065 in.
1.500 in.		.049 in.	.065 in.		.120 in.
1.750 in.			.065 in.
2.000 in.			.065 in.		.120 in.
2.500 in.			.065 in.
3.000 in.			.065 in.

Aluminum Round Stock

Aluminum is a lightweight and strong material used in a variety of applications, including frames, cable routing, structural bodies, and more.

Round Aluminum 6061, Extruded

Tube Bending Sizes Round Aluminum 6061,Extruded
TUBE OD	WALL THICKNESS
.750 in.	.125 in.
1.000 in.	.125 in.
1.500 in.	.125 in.
1.750 in.	.125 in.
2.000 in.	.125 in.

Laser Tube Cutting Sizes – Xometry Round Aluminum 6061,Extruded
TUBE OD	WALL THICKNESS
.750 in.	.125 in.
1.000 in.	.125 in.	.250 in.
1.125 in.		.250 in.
1.250 in.		.250 in.
1.500 in.	.125 in.	.250 in.
1.750 in.	.125 in.	.250 in.
2.000 in.	.125 in.	.250 in.	.375 in.
2.250 in.		.250 in.
2.500 in.	.125 in.	.250 in.		.500 in.
2.750 in.		.250 in.		.500 in.
3.000 in.	.125 in.	.250 in.	.375 in.	.500 in.
3.250 in.		.250 in.
3.500 in.		.250 in.	.375 in.	.500 in.
4.000 in.	.125 in.	.250 in.		.500 in.
4.500 in.		.250 in.		.500 in.
5.000 in.	.125 in.	.250 in.		.500 in.
5.500 in.				.500 in.
6.000 in.		.250 in.		.500 in.

Round Aluminum 6061, Drawn

Tube Bending Sizes Round Aluminum 6061,Drawn
TUBE OD	WALL THICKNESS
.250 in.	.035 in.	.049 in.	.058 in.	.065 in.
.375 in.	.035 in.	.049 in.	.058 in.	.065 in.
.500 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.		.125 in.
.625 in.	.035 in.	.049 in.	.058 in.	.065 in.			.125 in.
.750 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.		.125 in.
.875 in.	.035 in.	.049 in.	.058 in.	.065 in.			.125 in.
1.000 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.125 in.	.188 in.
1.250 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.		.125 in.
1.500 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.125 in.
1.750 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.
2.000 in.	.035 in.	.049 in.		.065 in.	.083 in.		.125 in.

Laser Tube Cutting Sizes Round Aluminum 6061,Drawn
TUBE OD	WALL THICKNESS
.500 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.		.125 in.
.625 in.	.035 in.	.049 in.	.058 in.	.065 in.			.125 in.
.750 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.		.125 in.
.875 in.	.035 in.	.049 in.	.058 in.	.065 in.			.125 in.
1.000 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.125 in.	.188 in.	.250 in.
1.125 in.	.035 in.	.049 in.	.058 in.	.065 in.			.125 in.		.250 in.
1.250 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.		.125 in.
1.375 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.		.125 in.
1.500 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.125 in.
1.625 in.			.058 in.
1.750 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.
2.000 in.	.035 in.	.049 in.		.065 in.	.083 in.		.125 in.

Stainless Steel Square and Rectangular Stock

Stainless square or rectangular tubes are used to fabricate strong and durable structures in a wide realm of industrial, processing, agricultural, and transportation applications.

Square Stainless Steel 304, Welded

Laser Tube Cutting Sizes Square Stainless Steel 304,Welded
WIDTH	WALL THICKNESS
.500 in.		.065 in.
.625 in.		.065 in.
.750 in.		.065 in.		.120 in.
1.000 in.	.049 in.	.065 in.	.083 in.	.120 in.
1.250 in.		.065 in.	.083 in.	.120 in.
1.500 in.	.049 in.	.065 in.	.083 in.	.120 in.	.180 in.
1.750 in.		.065 in.		.120 in.
2.000 in.		.065 in.	.083 in.	.120 in.	.180 in.		.250 in.
2.500 in.				.120 in.		.188 in.	.250 in.
3.000 in.				.120 in.	.180 in.		.250 in.
4.000 in.				.120 in.	.180 in.	.188 in.	.250 in.
5.000 in.							.250 in.
6.000 in.					.180 in.		.250 in.	.375 in.

Laser Tube Cutting Sizes Rectangle Stainless Steel 304,Welded
WIDTH	HEIGHT	WALL THICKNESS
1.000 in.	.500 in.	.065 in.
1.000 in.	.750 in.	.065 in.
1.500 in.	.500 in.	.065 in.
1.500 in.	.750 in.	.065 in.
1.500 in.	1.000 in.	.065 in.	.120 in.
2.000 in.	1.000 in.	.065 in.	.120 in.
2.000 in.	1.500 in.	.065 in.	.120 in.
3.000 in.	1.000 in.		.120 in.
3.000 in.	1.500 in.		.120 in.	.180 in.
3.000 in.	2.000 in.		.120 in.	.180 in.	.250 in.
4.000 in.	2.000 in.		.120 in.	.180 in.	.250 in.
4.000 in.	3.000 in.		.120 in.	.180 in.	.250 in.
5.000 in.	2.000 in.			.180 in.
5.000 in.	3.000 in.			.180 in.	.250 in.
6.000 in.	2.000 in.		.120 in.	.180 in.	.250 in.
6.000 in.	3.000 in.			.180 in.	.250 in.
6.000 in.	4.000 in.			.180 in.	.250 in.

Square Stainless Steel 316, Welded

Laser Tube Cutting Sizes Square Stainless Steel 316,Welded
WIDTH	WALL THICKNESS
1.000 in.	.065 in.	.120 in.
1.250 in.	.065 in.	.120 in.
1.500 in.	.065 in.	.120 in.
2.000 in.	.065 in.	.120 in.		.188 in.	.250 in.
3.000 in.		.120 in.	.180 in.		.250 in.
4.000 in.		.120 in.		.188 in.	.250 in.

Square and Rectangular Tubing

Square and rectangular tubes can make large, cost-effective structural components at scale. The flat faces make this ideal for mechanical assemblies. These materials are available for Xometry's laser tube cutting service only.

Aluminum Square and Rectangular Stock

Aluminum 6061 square or rectangular tubes are regularly used in Xometry's laser tube cutting services to build lightweight structural components for framing, overhead fixtures, brackets, shelving, and more. The information below outlines the available stock sizes for aluminum square and rectangular tubes.

Square Steel A513

Laser Tube Cutting Sizes Square Steel A513
WIDTH	WALL THICKNESS
.500 in.	.049 in.	.065 in.
.625 in.	.049 in.	.065 in.
.750 in.	.049 in.	.065 in.		.083 in.	.095 in.		.120 in.
.875 in.	.049 in.	.065 in.
1.000 in.	.049 in.	.065 in.	.072 in.	.083 in.		.109 in.	.120 in.
1.125 in.	.049 in.	.065 in.
1.250 in.	.049 in.	.065 in.		.083 in.	.095 in.	.109 in.	.120 in.
1.500 in.	.049 in.	.065 in.		.083 in.	.095 in.	.109 in.	.120 in.
1.750 in.		.065 in.		.083 in.	.095 in.	.109 in.	.120 in.
2.000 in.	.049 in.	.065 in.		.083 in.	.095 in.	.109 in.	.120 in.
2.500 in.		.065 in.		.083 in.	.095 in.	.109 in.	.120 in.
3.000 in.				.083 in.

Alloy Steel Round Stock

Alloy steel tube has no shortage of uses, whether for handlebars, exhaust manifolds, construction, agriculture, or automotive applications. A513-5 DOM tubing has the largest list of available sizes in the category.

Round Steel 4130, Seamless (Chromoly)

Tube Bending Sizes Round Steel 4130,Seamless
TUBE OD	WALL THICKNESS
.375 in.	.035 in.	.049 in.	.058 in.	.065 in.			.120 in.
.500 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.120 in.
.625 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.		.120 in.	.188 in.
.750 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.120 in.	.188 in.
1.000 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.120 in.	.188 in.
1.250 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.120 in.	.188 in.
1.500 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.120 in.
1.750 in.		.049 in.		.065 in.	.083 in.	.095 in.	.120 in.
2.000 in.		.049 in.		.065 in.	.083 in.	.095 in.	.120 in.	.188 in.

Laser Tube Cutting Sizes
Round Steel 4130,Seamless
TUBE OD	WALL THICKNESS
.500 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.120 in.
.625 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.		.120 in.	.188 in.
.750 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.120 in.	.188 in.	.250 in.
1.000 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.120 in.	.188 in.	.250 in.
1.125 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.120 in.	.188 in.
1.250 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.120 in.	.188 in.
1.500 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.120 in.		.250 in.
1.625 in.		.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.120 in.
1.750 in.		.049 in.		.065 in.	.083 in.	.095 in.	.120 in.
2.000 in.		.049 in.		.065 in.	.083 in.	.095 in.	.120 in.	.188 in.

Round Steel A513 Type 5, DOM

DOM: Drawn Over Mandrel

Tube Bending Sizes Round Steel A513 Type 5,DOM
TUBE OD	WALL THICKNESS
.250 in.	.035 in.			.065 in.
.375 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.
.500 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.
.625 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.
.750 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.
.875 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.
1.000 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.
1.250 in.	.035 in.	.049 in.		.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.
1.500 in.	.035 in.	.049 in.		.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.
1.750 in.		.049 in.		.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.
2.000 in.		.049 in.		.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.

Laser Tube Cutting Sizes
Round Steel A519 Type 5,DOM
WALL THICKNESS
TUBE OD
.500 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.
.563 in.		.049 in.		.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.
.625 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.
.688 in.					.083 in.	.095 in.		.120 in.
.750 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.	.219 in.	.250 in.
.813 in.					.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.	.219 in.	.250 in.
.875 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.	.219 in.	.250 in.
.938 in.						.095 in.				.134 in.	.156 in.
1.000 in.	.035 in.	.049 in.	.058 in.	.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.	.219 in.	.250 in.	.281 in.
1.063 in.					.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.		.250 in.
1.125 in.		.049 in.		.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.	.219 in.	.250 in.	.281 in.	.313 in.
1.188 in.					.065 in.	.083 in.	.095 in.		.120 in.	.125 in.		.156 in.	.188 in.	.219 in.	.250 in.		.313 in.
1.250 in.	.035 in.	.049 in.		.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.	.219 in.	.250 in.	.281 in.	.313 in.	.375 in.
1.313 in.					.065 in.	.083 in.	.095 in.	.109 in.	.120 in.		.134 in.	.156 in.	.188 in.	.219 in.	.250 in.		.313 in.
1.375 in.		.049 in.		.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.	.219 in.	.250 in.	.281 in.	.313 in.	.375 in.
1.438 in.									.120 in.				.188 in.	.219 in.	.250 in.
1.500 in.	.035 in.	.049 in.		.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.	.219 in.	.250 in.	.281 in.	.313 in.	.375 in.
1.563 in.				.065 in.		.095 in.		.120 in.	.125 in.		.156 in.	.188 in.		.250 in.			.375 in.
1.625 in.			.058 in.	.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.	.219 in.	.250 in.	.281 in.	.313 in.	.375 in.
1.750 in.		.049 in.		.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.	.219 in.	.250 in.	.281 in.	.313 in.	.375 in.
1.813 in.									.120 in.						.250 in.
1.875 in.				.065 in.		.095 in.	.109 in.	.120 in.	.125 in.		.156 in.	.188 in.	.219 in.	.250 in.	.281 in.	.313 in.	.375 in.
2.000 in.		.049 in.		.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.	.219 in.	.250 in.	.281 in.	.313 in.	.375 in.	.438 in.
2.125 in.				.065 in.		.095 in.		.120 in.	.125 in.		.156 in.	.188 in.	.219 in.	.250 in.	.281 in.	.313 in.	.375 in.
2.188 in.															.250 in.
2.250 in.				.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.	.219 in.	.250 in.	.281 in.	.313 in.	.375 in.	.438 in.
2.375 in.				.065 in.		.095 in.		.120 in.	.125 in.		.156 in.	.188 in.	.219 in.	.250 in.	.281 in.	.313 in.	.375 in.	.438 in.
2.500 in.				.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.	.219 in.	.250 in.	.281 in.	.313 in.	.375 in.	.438 in.
2.563 in.															.250 in.
2.625 in.				.065 in.		.095 in.	.109 in.	.120 in.			.156 in.	.188 in.	.219 in.	.250 in.		.313 in.	.375 in.
2.750 in.				.065 in.	.083 in.	.095 in.		.120 in.	.125 in.		.156 in.	.188 in.	.219 in.	.250 in.	.281 in.	.313 in.	.375 in.	.438 in.
2.875 in.				.065 in.				.120 in.	.125 in.		.156 in.	.188 in.	.219 in.	.250 in.	.281 in.	.313 in.	.375 in.
3.000 in.				.065 in.	.083 in.	.095 in.	.109 in.	.120 in.	.125 in.	.134 in.	.156 in.	.188 in.	.219 in.	.250 in.	.281 in.	.313 in.	.375 in.	.438 in.
3.125 in.									.125 in.				.188 in.		.250 in.		.313 in.	.375 in.
3.250 in.						.095 in.		.120 in.	.125 in.	.134 in.		.188 in.
3.375 in.							.120 in.				.188 in.			.250 in.		.313 in.	.375 in.
3.500 in.				.065 in.	.083 in.	.095 in.		.120 in.	.125 in.	.134 in.	.156 in.	.188 in.	.219 in.	.250 in.	.281 in.		.375 in.	.438 in.
3.625 in.								.120 in.	.125 in.			.188 in.		.250 in.		.313 in.	.375 in.	.438 in.
3.750 in.											.188 in.			.250 in.		.313 in.	.375 in.	.438 in.
3.875 in.												.188 in.		.250 in.			.375 in.
4.000 in.				.065 in.	.083 in.	.095 in.		.120 in.	.125 in.	.134 in.	.156 in.	.188 in.	.219 in.	.250 in.		.313 in.	.375 in.	.438 in.
4.125 in.													.188 in.		.250 in.		.313 in.	.438 in.
4.250 in.						.095 in.			.125 in.			.188 in.		.250 in.		.313 in.	.375 in.	.438 in.
4.375 in.														.188 in.			.375 in.		.438 in.
4.500 in.						.095 in.		.120 in.	.125 in.	.134 in.	.156 in.	.188 in.	.219 in.	.250 in.		.313 in.	.375 in.	.438 in.
4.625 in.									.120 in.	.125 in.		.188 in.		.250 in.		.313 in.	.375 in.
4.750 in.											.188 in.			.250 in.		.313 in.	.375 in.
5.000 in.												.188 in.		.250 in.		.313 in.	.375 in.	.438 in.
5.125 in.																.313 in.
5.250 in.																	.313 in.
5.500 in.																		.500 in.
5.750 in.

Round Steel A513 Type 1, HREW

HREW: Hot Rolled Electric-Welded

Tube Bending Sizes
Round Steel A513 Type 1,HREW
TUBE OD	WALL THICKNESS
1.000 in.			.120 in.
1.250 in.	.065 in.	.083 in.	.120 in.
1.500 in.		.083 in.
1.750 in.	.065 in.	.083 in.	.120 in.
2.000 in.		.083 in.	.120 in.

Laser Tube Cutting Sizes Round Steel A513 Type 1,HREW
TUBE OD	WALL THICKNESS
1.000 in.			.120 in.
1.125 in.		.083 in.	.120 in.
1.250 in.	.065 in.	.083 in.	.120 in.
1.375 in.			.120 in.
1.500 in.		.083 in.
1.625 in.			.120 in.
1.750 in.	.065 in.	.083 in.	.120 in.
1.875 in.			.120 in.
2.000 in.		.083 in.	.120 in.
2.250 in.			.120 in.
2.375 in.			.120 in.
2.500 in.	.065 in.	.083 in.	.120 in.
3.000 in.		.083 in.	.120 in.
3.500 in.			.120 in.
4.000 in.	.065 in.	.083 in.	.120 in.
4.500 in.	.065 in.		.120 in.
5.000 in.	.065 in.	.083 in.	.120 in.
6.000 in.			.120 in.

Tube Bending Sizes
Round Steel A513 Type 2,CREW
TUBE OD	WALL THICKNESS
.500 in.	.035 in.	.049 in.	.065 in.
.625 in.	.035 in.	.049 in.
.750 in.	.035 in.		.065 in.
.875 in.		.049 in.	.065 in.
1.000 in.		.049 in.	.065 in.
1.500 in.			.065 in.
2.000 in.			.065 in.

Tube Bending Sizes Round Steel A513 Type 2,CREW
TUBE OD	WALL THICKNESS
.500 in.	.035 in.	.049 in.	.065 in.
.625 in.	.035 in.	.049 in.
.750 in.	.035 in.		.065 in.
.875 in.		.049 in.	.065 in.
1.000 in.		.049 in.	.065 in.
1.500 in.			.065 in.
2.000 in.			.065 in.

Laser Tube Cutting Sizes Round Steel A513 Type 2,CREW
TUBE OD	WALL THICKNESS
.500 in.	.035 in.	.049 in.	.065 in.
.625 in.	.035 in.	.049 in.
.750 in.	.035 in.		.065 in.
.875 in.		.049 in.	.065 in.
1.000 in.		.049 in.	.065 in.
1.125 in.			.065 in.
1.375 in.			.065 in.
1.500 in.			.065 in.
2.000 in.			.065 in.
2.250 in.			.065 in.
3.000 in.			.065 in.
3.500 in.			.065 in.

Tube Fabrication Services

Grinding & Sanding

Both wet and dry sanding processes to remove material, or provide a smooth finish.

Forming

Amada Astro II Robotic Press Brake yields faster turnaround times without compromising quality.

Manufacturing Guidelines

Ours Resources
