KH-TAT offers professional sheet metal cutting services, including laser cutting and waterjet cutting, to meet the processing needs of different materials and thicknesses. Below is a reference information on different materials and their standard thicknesses. You can use the navigation bar at the top of the page to quickly jump to specific material categories for detailed information.
Metal Sheet Stock Materials
Standard Sheet Thickness Lookup Chart
| Material Name | Available Gauge Thickness, Inch. |
|---|---|
|
Aluminum 2024-T3 |
0.025” |
|
Aluminum 5052 H32 |
0.020”, 0.025”, 0.032”, 0.040”,0.050”, 0.063”, 0.080”, 0.090”, 0.100”, 0.125”, 0.160”, 0.188”, 0.250”, 0.375”, 0.500” |
|
Aluminum 6061 T6 |
0.016”, 0.020”, 0.025”, 0.032”, 0.040”, 0.050”, 0.063”, 0.080”, 0.090”, 0.100”, 0.125”, 0.160”, 0.190”, 0.250”, 0.313”, 0.375”, 0.500”, 0.625”, 0.750”, 0.750”, 0.875”, 1.000” |
|
Aluminum 7075 T6 |
0.025”, 0.032”, .040”, 0.050”, 0.063”, 0.071”, 0.080”, 0.090”, 0.100”, 0.125”, 0.160”, 0.190”, 0.250”, 0.375”, 0.500”, 0.625”, 0.750”, 1.000” |
|
Aluminum MIC6 |
0.250”, 0.375”, 0.500”, 0.750” |
|
Pre-Anodized 6061-T6, Black |
0.063”, 0.125”, 0.250”, 0.375”, 0.500” |
|
Brass 260 |
0.005”, 0.010”, 0.016”, 0.020”, 0.025”, 0.032”, 0.040”, 0.050”, 0.063”, 0.080”, 0.093”, 0.125”, 0.188”, 0.250” |
|
Brass 353 H02 |
0.063”, 0.125”, 0.150” |
|
Brass 464 H01 |
0.032”, 0.040”, 0.063”, 0.080” |
|
Bearing Bronze 932 M07 |
0.250” |
|
Bronze 220 H02 |
0.020”, 0.032”, 0.040”, 0.050”, 0.064”, 0.080”, 0.090”, 0.125” |
|
Bronze 510 H08 (spring) |
0.005”, 0.008”, 0.010”, 0.016”, 0.020”, 0.032”, 0.040”, 0.050”, 0.064”, 0.090”, 0.125” |
|
Silicon Bronze 655 |
0.063” |
|
Copper 101, H00 to H01 |
0.025”, 0.032”, 0.040”, 0.050”, 0.063” |
|
Copper 110, Annealed |
0.005”, 0.010”, 0.021”, 0.043”, 0.063”, 0.093”, 0.125” |
|
Copper 110, H01 |
0.016” |
|
Copper 110, H02 |
0.020”, 0.040”, 0.050”, 0.063”, 0.080”, 0.093”, 0.125”, 0.188”, 0.250” |
|
Nickel 200, annealed |
0.019”, 0.062” |
|
Nickel 625, annealed |
0.020”, 0.032”, 0.040”, 0.050”, 0.063” |
|
Stainless Steel 17-4 PH, annealed |
0.018”, 0.032”, 0.040” |
|
Stainless Steel 17-7 shim, hardened |
0.004”, 0.005”, 0.010”, 0.020”, 0.031” |
|
Stainless Steel 301, spring temper |
0.005”, 0.006”, 0.010”, 0.012”, 0.015”, 0.018”, 0.020”, 0.031”, 0.042”, 0.048”, 0.059” |
|
Stainless Steel 304 |
0.018”, 0.024”, 0.030”, 0.036”, 0.048”, 0.060”, 0.075”, 0.105”, 0.120”, 0.188”, 0.250”, 0.313”, 0.375”, 0.500”, 0.625”, 0.750”, 1.000” |
|
Stainless Steel 304 shim, hardened |
0.005”, 0.006”, 0.010”, 0.012”, 0.015”, 0.020”, 0.025” |
|
Stainless Steel 304, #4 brushed |
0.024”, 0.036”, 0.048”, 0.060”, 0.075”, 0.090”, 0.120”, 0.135”, 0.250”, 0.375”, 0.500”, 0.625” |
|
Stainless Steel 316 |
0.018”, 0.024”, 0.030”, 0.036”, 0.048”, 0.060”, 0.075”, 0.105”, 0.120”, 0.135”, 0.188”, 0.250”, 0.313”, 0.375”, 0.500”, 0.625”, 0.750”, 1.000” |
|
Stainless Steel 410, annealed |
0.250” |
|
Stainless Steel 430, #3 brushed |
0.035”, 0.046”, 0.060” |
|
Stainless Steel 440C |
0.063”, 0.094”, 0.125”, 0.156”, 0.188” |
|
Stainless Steel CPM 154 |
0.063”, 0.094”, 0.125”, 0.156”, |
|
Stainless Steel S30V, annealed |
0.094”, 0.125”, 0.188”, 0.250” |
|
1075 Spring Steel, annealed |
0.050”, 0.188” |
|
1075 Spring Steel, Blue Tempered |
0.015” |
|
1095 Spring Steel, annealed |
0.015”, 0.025”, 0.035”, 0.050”, 0.063”, 0.083”, 0.125”, 0.188” |
|
1095 Spring Steel, blue tempered |
0.005”, 0.008”, 0.010”, 0.015”, 0.020”, 0.025”, 0.030”, 0.035”, 0.042”, 0.050”, 0.063” |
|
4130 chrome-moly steel, annealed |
0.032”, 0.040”, 0.050”, 0.063”, 0.080”, 0.100”, 0.125”, 0.160”, 0.190”, 0.250” |
|
AR400 Steel, hardened |
0.125”, 0.188”, 0.250”, 0.375”, 0.500” |
|
AR500 Steel, hardened |
0.119”, 0.188”, 0.250”, 0.375”, 0.500”, 0.625”, 0.750” |
|
Corten A588 (Weathered) Steel |
0.188”, 0.250”, 0.3125", 0.375", 0.500", 0.625", 0.750", 1.000" |
|
Hot Rolled Steel 1045 |
0.250”, 0.375”, 0.500”, 0.625”, 0.750”, 1.000” |
|
Hot Rolled Steel A569/ASTM A1011 |
0.060”, 0.075”, 0.105”, 0.125”, 0.135” |
|
Steel 1008, zinc-galvanized |
0.024”, 0.033”, 0.048”, 0.060”, 0.075”, 0.100”, 0.120”, 0.135” |
|
Steel 1018 |
0.125”, 0.188”, 0.250”, 0.313”, 0.375”, 0.500”, 0.625”, 0.750”, 0.875”, 1.000” |
|
Steel 4140, hardened |
0.125”, 0.188”, 0.250”, 0.375”, 0.500” |
|
Steel 80CRV2 |
0.125”, 0.188” |
|
Steel A36 |
0.100”, 0.120”, 0.188”, 0.250”, 0.313”, 0.375”, 0.500”, 0.625”, 0.750”, 1.000” |
|
Steel A36, pickled and oiled |
0.060”, 0.075”, 0.100”, 0.120”, 0.135”, 0.135”, 0.188”, 0.250”, 0.375”, 0.500” |
|
Steel A366/1008 |
0.024”, 0.030”, 0.036”, 0.048”, 0.060”, 0.075”, 0.090”, 0.105”, 0.125” |
|
Steel A572 Grade 50 |
0.188”, 0.250”, 0.313”, 0.375”, 0.500” |
|
Steel G90, galvanized |
0.022”, 0.024”, 0.033”, 0.048”, 0.060” |
|
Tool Steel D2, annealed |
0.063”, 0.094”, 0.125”, 0.156”, 0.188” |
|
Tool Steel O1, annealed |
0.016”, 0.031”, 0.047”, 0.063”, 0.078”, 0.094”, 0.109”, 0.125”, 0.156”, 0.188”, 0.250”, 0.313”, 0.375”, 0.438”, 0.500” |
|
Titanium (Grade 2) |
0.035” |
|
Titanium 6Al-4V (Grade 5) |
0.032”, 0.063”, 0.125”, 0.188”, 0.250” |
Sheet thickness lookup chart for sheet cutting or forming processes. These are the standard available thicknesses of the listed material; other thicknesses may be available upon request. Xometry uses thickness measurements instead of sheet gauges.
Plastic Sheet Stock Materials
Standard Sheet Thickness Lookup Chart
| Material Name | Available Gauge Thickness, Inch. |
|---|---|
|
ABS, Black |
0.125”, 0.188”, 0.234” |
|
ABS, White |
0.060” |
|
Acetal, Black |
0.031”, 0.063”, 0.093”, 0.125”, 0.188”, 0.250”, 0.375” |
|
Acetal, White |
0.031”, 0.063”, 0.188” |
|
Acrylic, Clear |
0.125” (or 3 mm), 0.188”, 0.219” |
|
Acrylic, Colored |
0.125” (or 3 mm) |
|
HDPE, White |
0.250”, 0.375”, 0.500” |
|
Nylon 6/6, Black |
0.125” |
|
PETG Plastic, Clear |
0.020”, 0.063”, 0.094”, 0.125”, 0.250” |
|
Polycarbonate, Clear |
0.030”, 0.040”, 0.060”, 0.080”, 0.093”, 0.118”, 0.125”, 0.177”, 0.220”, 0.236”, 0.250”, 0.375”, 0.500”, 0.750” |
|
Polypropylene, White |
0.125” |
|
PTFE, White or Black |
0.039”, 0.063”, 0.125” |
|
PVC, Gray |
0.125” |
|
UHMW-PE, White |
0.188”, 0.250”, 0.375”, 0.500”, 0.750” |
Sheet thickness lookup chart for sheet cutting processes. These are the standard available thicknesses of the listed material; other thicknesses may be available upon request. Xometry uses thickness measurements instead of sheet gauges.
Composite Sheet Stock Materials
Standard Sheet Thickness Lookup Chart
| Material Name | Available Gauge Thickness, Inch. |
|---|---|
|
Carbon Fiber |
0.040”, 0.063”, 0.080”, 0.118”, 0.125” |
|
Garolite G-10 (FR4), Black |
0.063”, 0.125”, 0.250”, 0.375” |
|
Garolite G-11 (FR5), Green |
0.063”, 0.125”, 0.250”, 0.375” |
|
Garolite LE (Phenolic), Brown |
0.125”, 0.375” |
Sheet thickness lookup chart for sheet cutting processes. These are the standard available thicknesses of the listed material; other thicknesses may be available upon request. Xometry uses thickness measurements instead of sheet gauges.
Rubber Sheet Stock Materials
Standard Sheet Thickness Lookup Chart
| Material Name | Available Gauge Thickness, Inch. |
|---|---|
|
Buna-N Rubber, Adhesive-Backed, Black |
0.125” |
|
Buna-N Rubber, Black |
0.031”, 0.063”, 0.125” |
|
Cork and Buna-N Blend, Brown |
0.063”, 0.125” |
|
EPDM Rubber |
0.063”, 0.125” |
|
High Temp Silicone Rubber, Adhesive-Backed, Red |
0.125” |
|
High Temp Silicone Rubber, Red |
0.063”, 0.125” |
|
Paper Fiber and Buna-N Blend, Gray |
0.031” |
|
PTFE Gasket Material |
0.063” |
Sheet thickness lookup chart for sheet cutting processes. These are the standard available thicknesses of the listed material; other thicknesses may be available upon request. Xometry uses thickness measurements instead of sheet gauges.
Foam Sheet Stock Materials
Standard Sheet Thickness Lookup Chart
| Material Name | Available Gauge Thickness, Inch. |
|---|---|
|
EVA Foam, Black |
0.125”, 0.250”, 0.375”, 0.500”, 0.750”, 1.000”, 1.500”, 2.000” |
|
EVA Foam, Blue |
0.220” |
Sheet thickness lookup chart for sheet cutting processes. These are the standard available thicknesses of the listed material; other thicknesses may be available upon request. Xometry uses thickness measurements instead of sheet gauges.
Wood Sheet Stock Materials
Standard Sheet Thickness Lookup Chart
| Material Name | Standard Sheet Thickness Lookup Chart |
|---|---|
|
Cherry Hardwood |
0.150” |
|
Hardboard |
0.135” |
|
MDF |
0.125”, 0.250”, 0.375”, 0.500” |
|
Poplar Hardwood |
0.150” |
|
Red Oak Hardwood |
0.150” |
|
Uncoated Wood Laminate (Plywood), Birch |
0.125”, 0.230”, 0.375”, 0.500” |
Sheet thickness lookup chart for sheet cutting processes. These are the standard available thicknesses of the listed material; other thicknesses may be available upon request. Xometry uses thickness measurements instead of sheet gauges.
Sheet metal processing capabilities: cutting and forming
Laser Cutting & Waterjet Cutting Services
Through the KH-TAT platform, you can instantly receive quotes for laser-cut or waterjet-cut parts. We have no minimum order quantity, ensuring you receive your finished parts within days. All orders include free shipping, and international prototype orders are priced including customs duties, giving you greater control over your cost budget. We currently offer optimized services with price reductions of up to 35% and delivery times shortened by 30%, helping you move your projects forward faster.

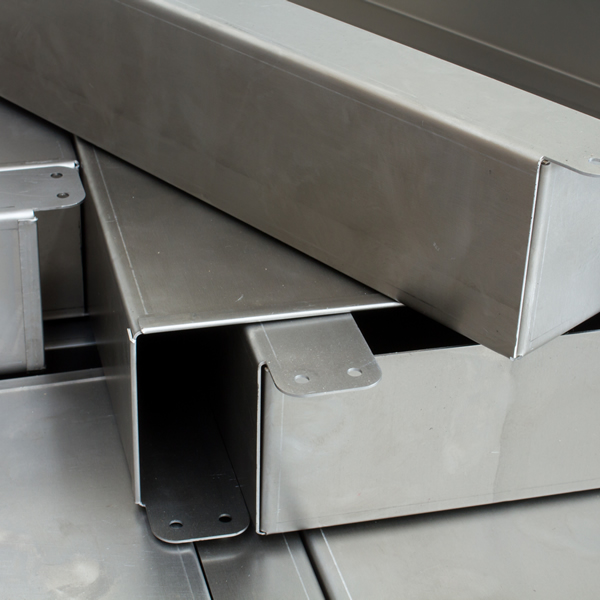

Sheet Metal Fabrication Services
KH-TAT offers custom-made sheet metal parts fabrication services, providing instant quotes and completing the entire process from prototyping to mass production within days. We are ISO 9001:2015, ISO 13485, IATF 16949:2016, and AS9100D international quality system certified, and have completed ITAR registration, ensuring that every sheet metal part meets stringent industry standards and compliance requirements.

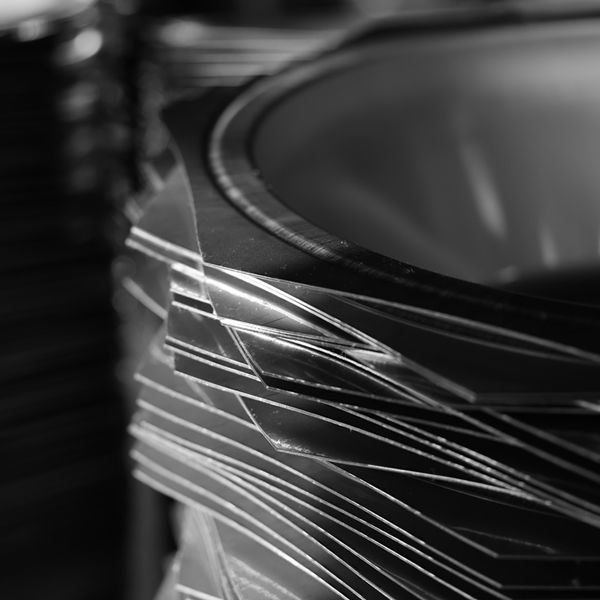

Metal Stamping Services
From small-batch pilot production to million-unit scale manufacturing, KH-TAT provides high-quality metal stamping parts manufacturing services. With extensive experience in stamping processes and professional production capabilities, we can provide a one-stop solution from mold development to finished product delivery, tailored to your design requirements.
